Color Isolator

2026-02-21

Overview

Pick a color, get a matte. Everything close to the targeted colored stays, everything else gets removed. Output is either a matte or the original image masked by the matte.

A simple kernel but a good one to understand, once you see how color difference is just subtraction across three channels, a lot of other techniques start making sense.

The Algorithm

Color distance

We treat RGB like a 3D space. Each pixel is a point, and the target color is another point in the same space. The distance between them is the Euclidean length of the per-channel difference:

d = \sqrt{(R - R_t)^2 + (G - G_t)^2 + (B - B_t)^2}

In code that is, subtract target from pixel per channel, square each difference, add them together, and square root the sum. That single number d represents how different the pixel is from the target color.

Threshold and softness

Once we have d, we convert it into a mask:

If d is within the threshold, the pixel is inside the selection, mask = 1
If d exceeds threshold + softness, the pixel is outside, mask = 0
Between them, the mask falls off linearly from 1 down to 0

The linear falloff is:

m = 1 - \frac{d - \text{threshold}}{\text{softness}}

Then clamped to stay in range:

m = \mathrm{clamp}(m,\; 0,\; 1)

An epsilon is added to softness in the kernel to avoid dividing by zero when softness = 0, which effectively gives you a hard edge at the threshold.

Parameters

Parameter	Description
Target	The color to isolate
Threshold	How close a pixel needs to be to the target to pass
Softness	How gradually the mask falls off beyond the threshold
Colored Output	Off = greyscale matte · On = original color masked by matte

Before and After

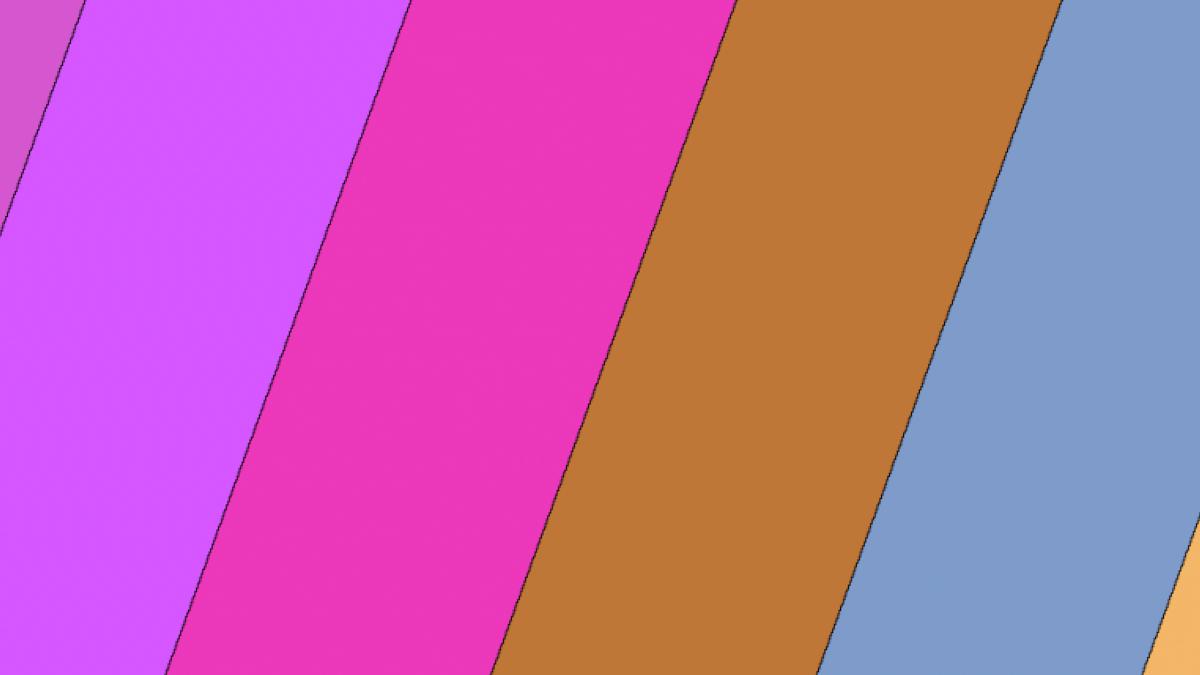

Before, full color input — Input, full color

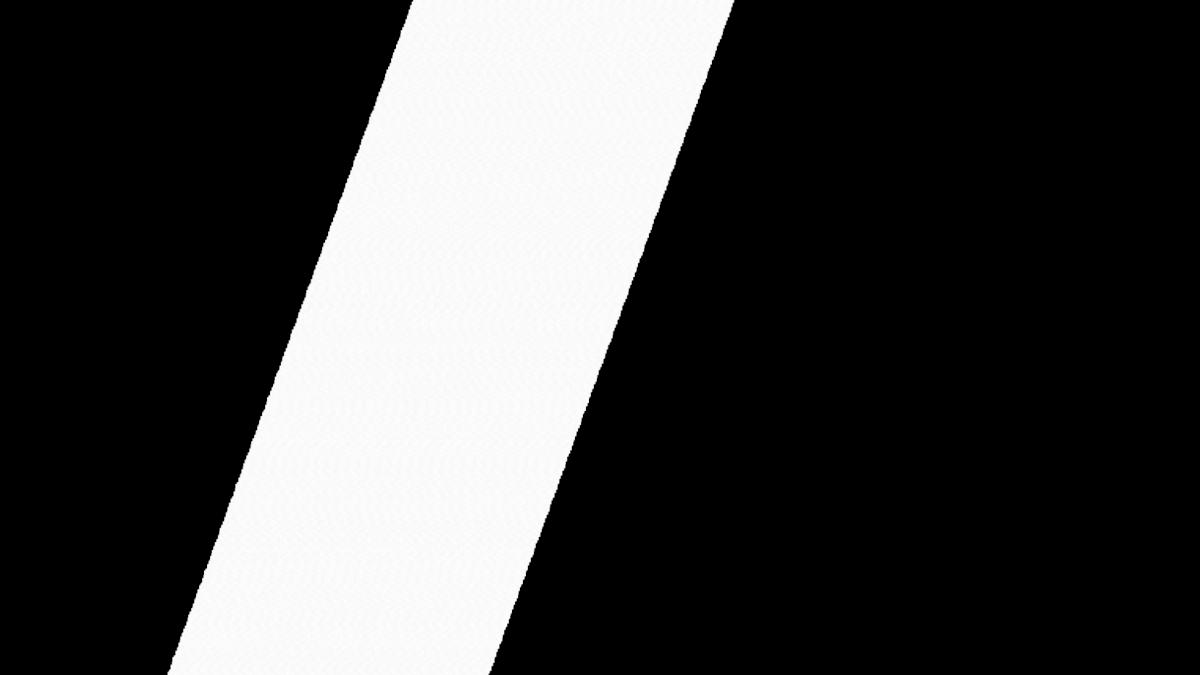

After, isolated color — Output, isolated color

Blinkscript Code

// ColorIsolator — isolates a target color using RGB distance
kernel ColorIsolator : ImageComputationKernel<ePixelWise> {
  Image<eRead, eAccessPoint, eEdgeClamped> src;
  Image<eWrite> dst;

  param:
    float4 target;
    float  threshold;
    float  softness;
    bool   coloredOutput;

  void process() {
    float4 pixel = src();

    // subtract target channels from pixel channels
    float dR = pixel.x - target.x;
    float dG = pixel.y - target.y;
    float dB = pixel.z - target.z;

    // square each difference, sum them, take the square root
    // gives a single value representing how different the pixel is from the target
    float dist = sqrt(dR*dR + dG*dG + dB*dB);

    // pixels inside threshold clamp to 1, beyond threshold+softness clamp to 0
    // epsilon prevents division by zero when softness = 0
    float mask = 1.0f - (dist - threshold) / (softness + 0.000001f);
    mask = clamp(mask, 0.0f, 1.0f);

    if (coloredOutput) {
      dst() = float4(pixel.x * mask, pixel.y * mask, pixel.z * mask, pixel.w);
    } else {
      dst() = float4(mask, mask, mask, mask);
    }
  }
};
